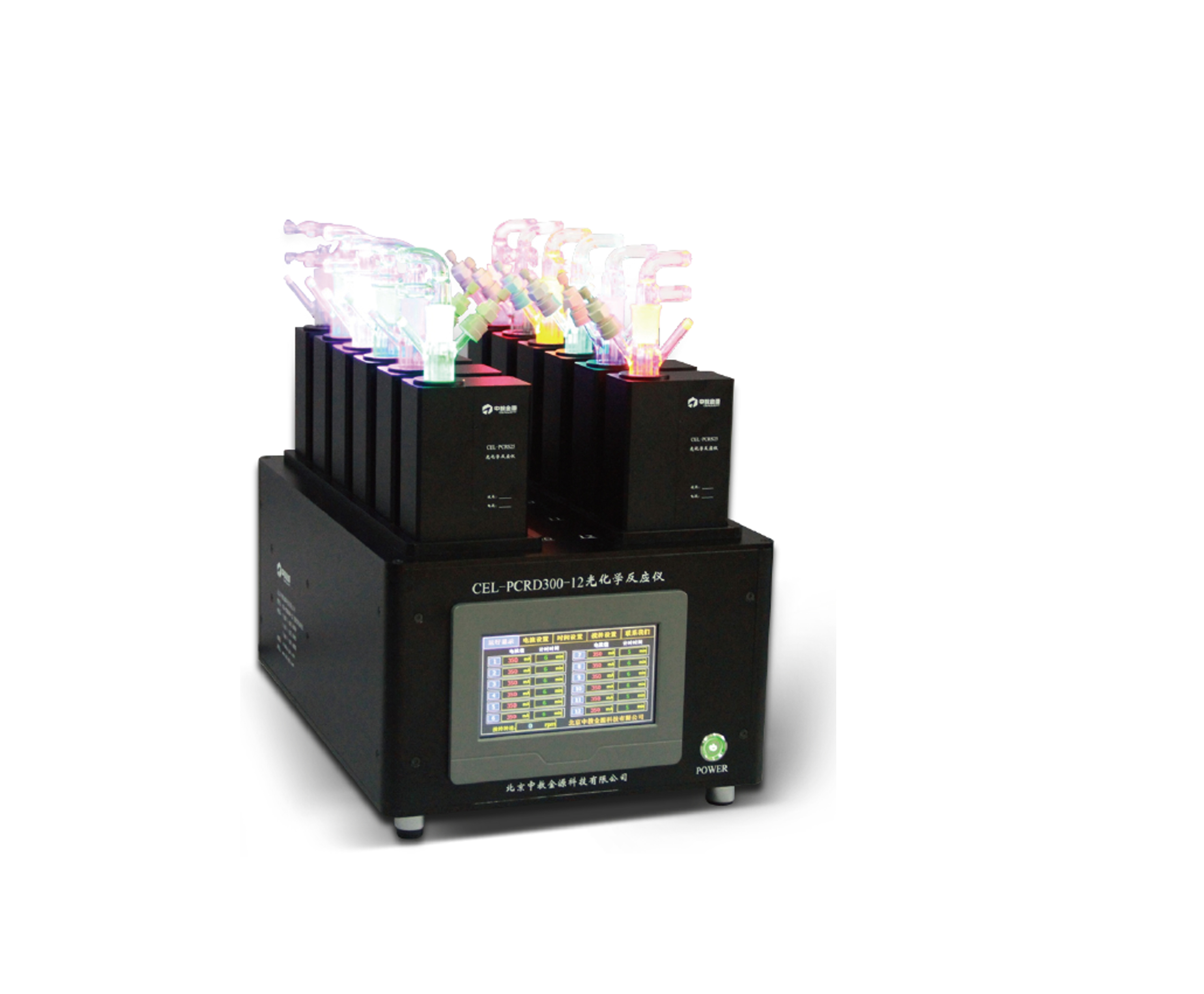

CEL-PCRD300-12 Photochemical Reaction Instrument (LED)

Model:CEL-PCRD300-12

Place of Origin:beijing

Brief introduction:The CEL-PCRD300-12 photochemical reaction instrument (LED) mainly uses the screening of catalysts to improve the efficiency of photocatalytic experiments. It can simultaneously experiment with 12 samples, which realizes the analysis of samples under different wavelengths and different conditions and speeds up the experimental process. The functions of temperature control, ventilation, vacuum, stirring, and selection of various wavelengths of the catalytic reaction tube are realized. The standard GDT-12 gas distributor can also independently control the experimental reaction atmosphere of the reaction tube.

Contact now

The CEL-PCRD300-12 photochemical reaction instrument (LED) mainly uses the screening of catalysts to improve the efficiency of photocatalytic experiments. It can simultaneously experiment with 12 samples, which realizes the analysis of samples under different wavelengths and different conditions and speeds up the experimental process. The functions of temperature control, ventilation, vacuum, stirring, and selection of various wavelengths of the catalytic reaction tube are realized. The standard GDT-12 gas distributor can also independently control the experimental reaction atmosphere of the reaction tube.


Instrument advantages

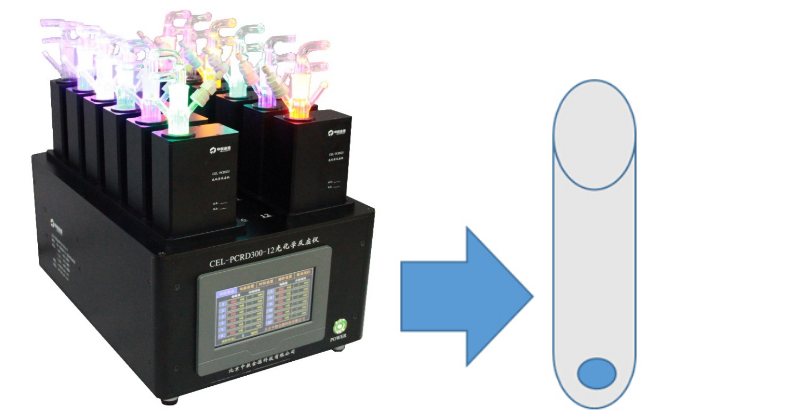

1) Use side irradiation to increase the irradiation area, which is 10 times that of bottom or top irradiation;

2) 12-bit independent numerical control, stirring, light intensity, multi-wavelength, ventilation, vacuuming;

3) The wavelength can be arbitrarily matched; optional wavelengths 365nm, 395nm, 405nm, 420nm, 455nm, 470nm, 500nm, 520nm, 590nm, 620nm, 660nm, 740nm, 810nm, 850nm, 940nm, white LED;

4) Simultaneous stirring of the 12-bit reactor is realized to better mix samples;

5) Modular design can be used to achieve multi-band irradiation only by replacing the PCRS25 module;

6) The LED light source does not need water cooling, no filter, and the light is uniform;

7) The LED power supply is individually controlled by the touch screen to achieve free matching.

Technical Parameters

items

parameters

Function



12-bit photochemical   reaction instrument; independent control, stirring, adjustable light   intensity, multi-wavelength selection, ventilation; PCRS25 photochemical   reaction instrument light box realizes online hot swapping and replacement of   band.

LED Standard 12-bit   wavelength

365nm, 395nm, 405nm,   420nm, 455nm, 470nm, 500nm, 520nm, 590nm, 620nm, 660nm, white light,

Optional wavelength

740nm,810nm,850nm,940nm

Control mode

7-inch high-definition   touch screen CNC, 240 * 128dpi

input power

300W,AC110-240V,±0.01%

LED power consumption

12*25W,DC38V,±0.01%

Irradiation



12-bit independent LED   side irradiation, irradiation area 100mm * 20mm (50ml); optional 100mm * 30mm   (100ml)

Number of samples



12-bit 50ml quartz   reaction tubes + temperature controlled cold well (optional 100ml)

Irradiation unevenness



<5%

Standard configuration

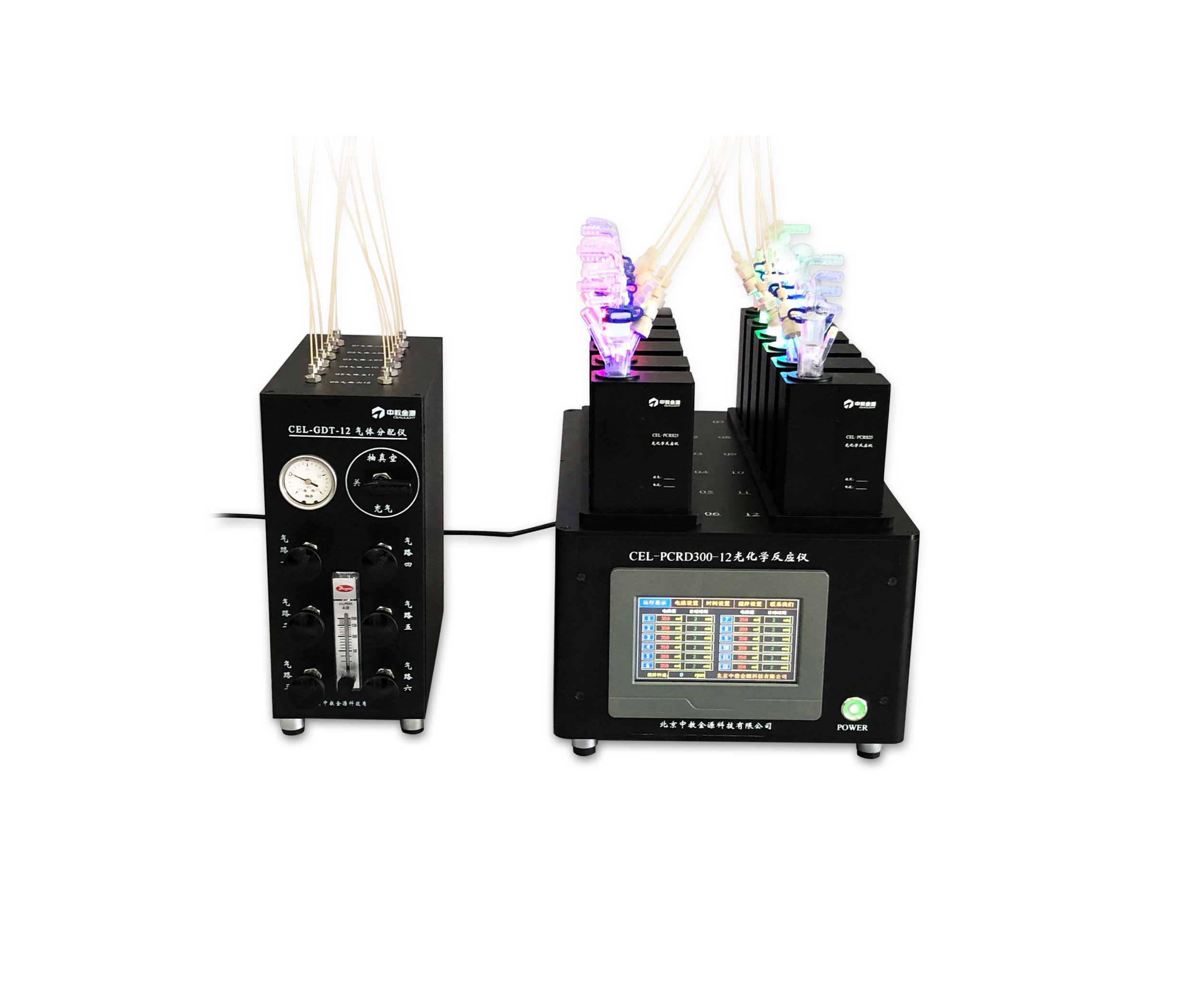

1 set of host system,   1 set of CEL-GDT-12 gas distributor, 12 sets of CEL-PCRS25 photochemical   reactor light box, 14 sets of quartz reaction tubes (50ml), 12 sets of PEEK   special joints and pipelines

Description of   wavelength selection: customers can choose the band and quantity according to   the experimental requirements, a total of 12 standard; can also add multiple   bands according to demand.

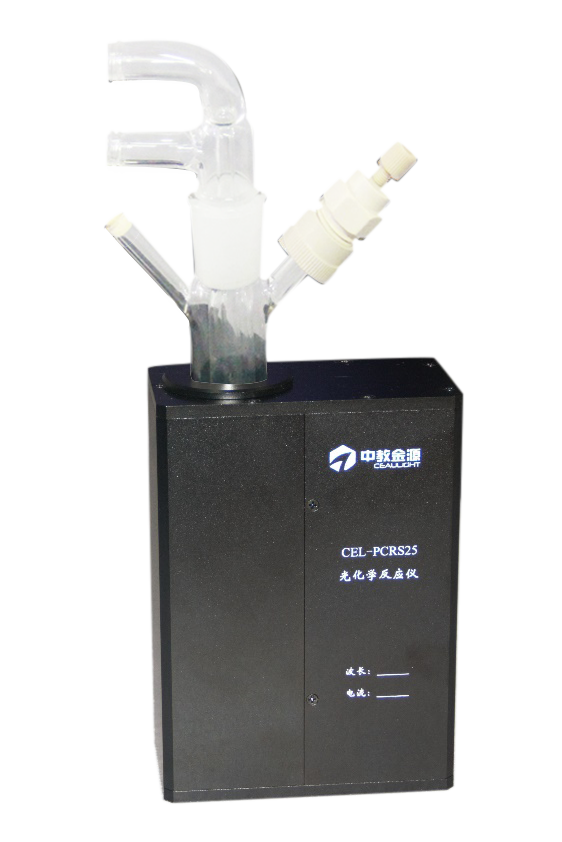

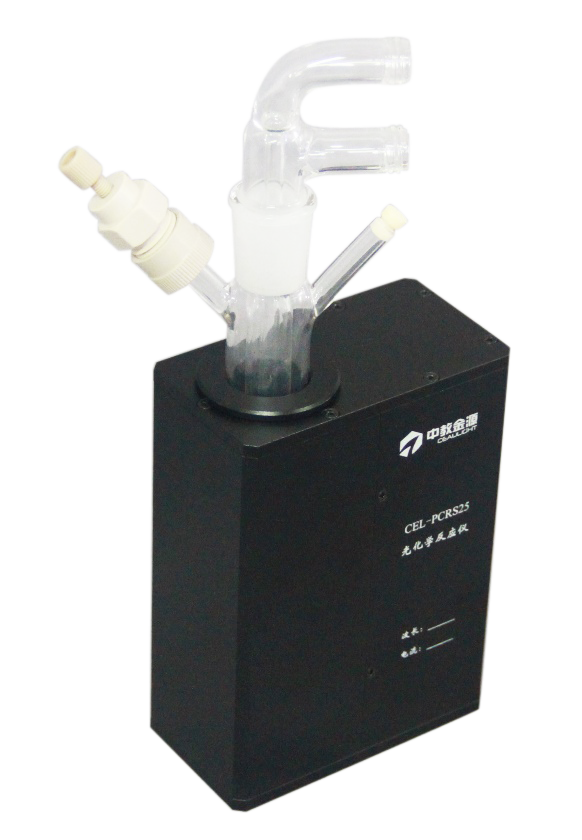

CEL-PCRS25 photochemical reactor light box module

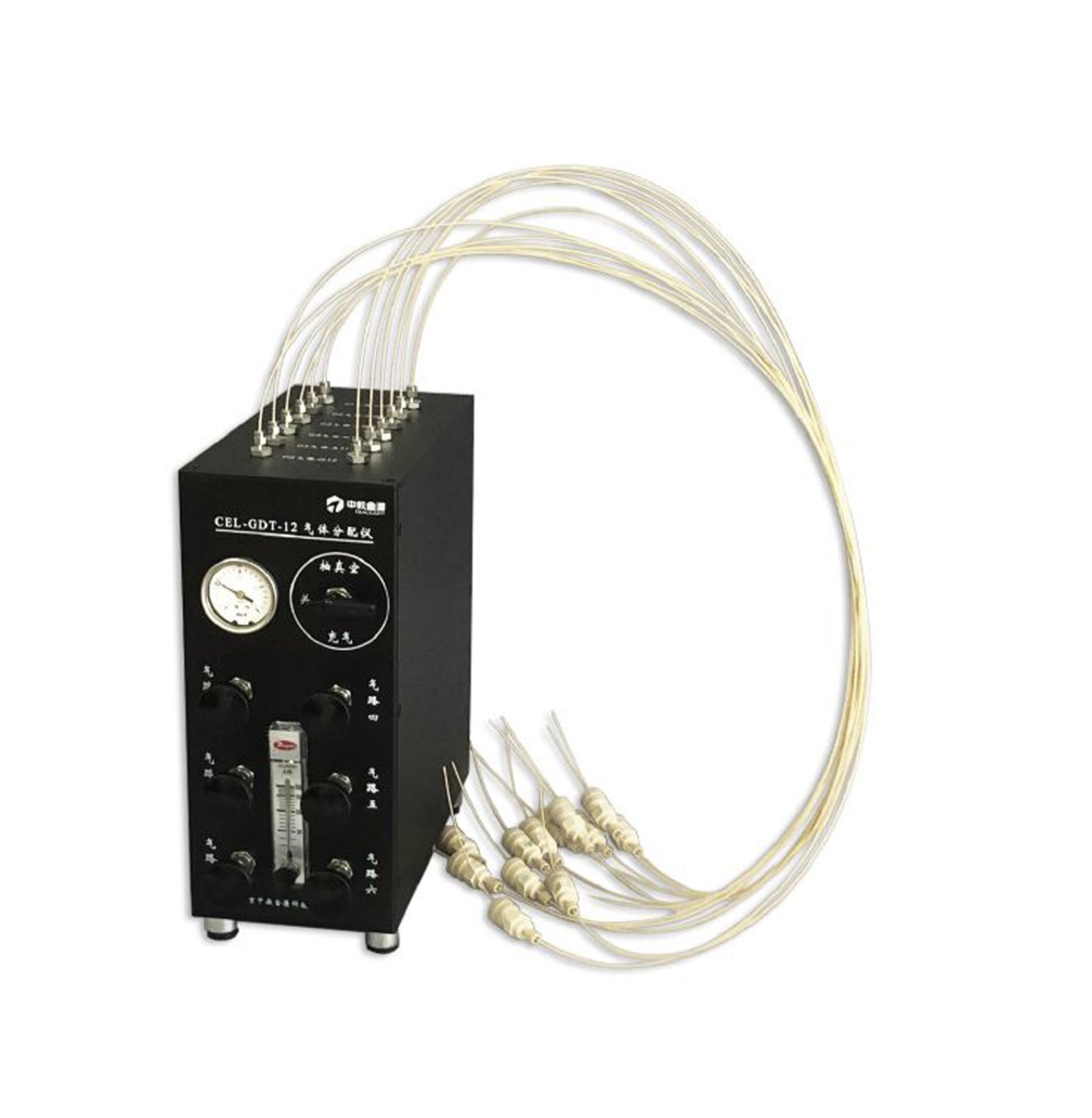

CEL-GDT-12 gas distributor
