CEL-M500-T5 mercury lamp light source is a research grade mercury lamp light source specially for catalytic experiments, photolithography, photocatalysis, photodegradation and chemical synthesis in the ultraviolet region; the light source is equipped with 350W/500W high pressure short-arc spherical mercury lamp inside, which forms an arc light discharge under high frequency and high pressure excitation, radiating a strong and stable intense spectrum in the ultraviolet region with high energy density and stable output, suitable for Photochemical research and various experiments of photoelectricity, especially suitable for strong photocatalysis (such as photodegradation and other photocatalytic research).

The light source is compatible with a variety of specifications, brands, imported and domestic filters and lenses (25.4mm, 50.8mm,,M52, M62, etc.), commonly used filter specifications (UV bandpass filters): 254nm, 313nm, 334nm, 350nm, 365nm, 380nm, 400nm, 405nm. filters, reflectors, K9 optical filters, etc.

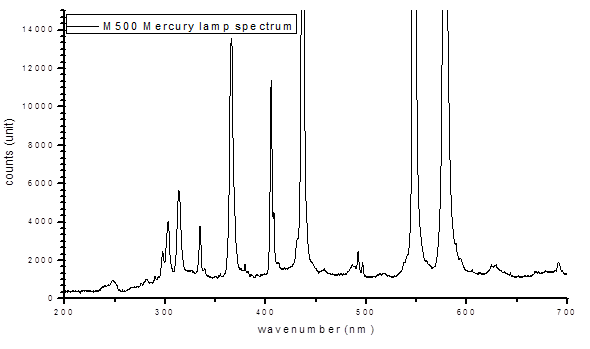

Mercury lamp spectral curve (this spectrogram was measured by AULTT-P series fiber optic spectrometer)

Mercury lamp light source product technical specifications table

Complete combination of accessories (can be used with the CEL-HX series, CEL-S series xenon lamp light source accessories)

With the use of mercury lamp light source, you can choose a variety of different accessories, you can add lenses, filters, optical fiber, etc., suitable for different experimental needs. Change the wavelength by different filters for selective wavelength studies in the UV region.
