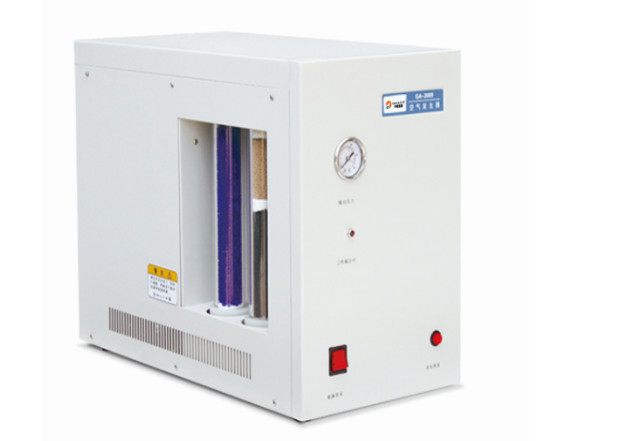

THA3L Air Generator

Model:THA3L

Place of Origin:Beijing

Brief introduction:THA3L air generator is using low noise compressor as the air source; this instrument is equipped with secondary overpressure protection device and temperature self-control device, purification system consists of filter activated carbon.

Contact now

Specification parameters.


1.Air generator, hydrogen fuel gas in FID, also used as power gas in automatic six-way valve


2. Air purity oil-free three-stage purification


3. Output flow rate 0-3L/min


4. Output pressure Output 0-0.4Mpa


5. Noise: ≤42dB




Working conditions.


1. Power supply voltage: 220V 50Hz


2. Ambient temperature: 15-40C° Relative humidity ≤70%


3. No large amount of dust and corrosive gas pollution


4. Rated power 150W


5. External dimensions 470×240×380mm (L×W×H) Weight 23Kg
