Model:CEL-NP2000-2A

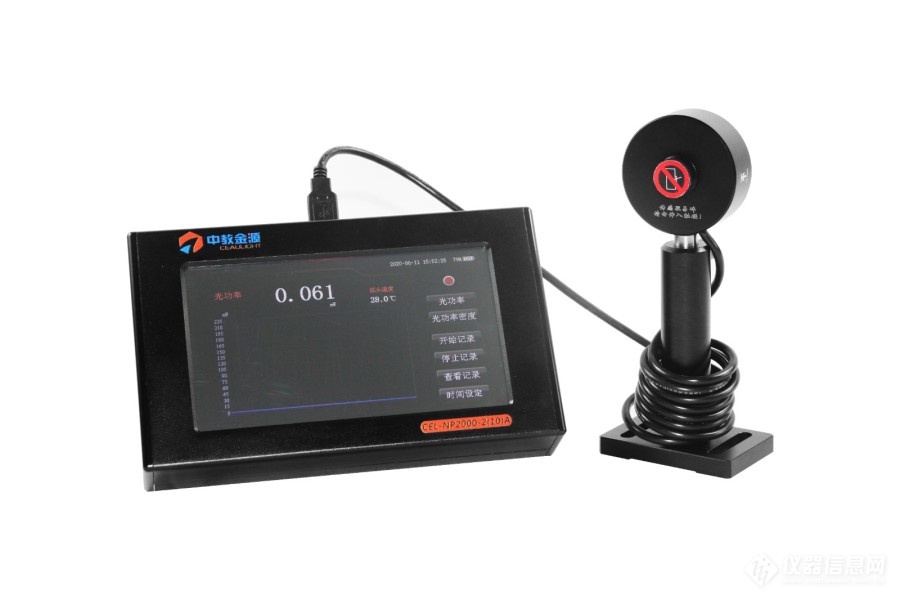

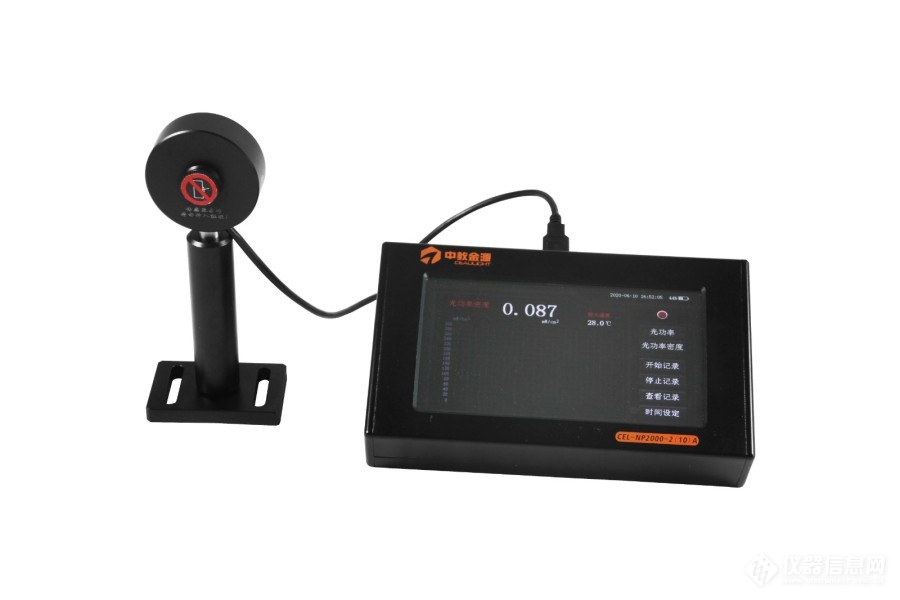

CEL-NP2000-2A automatic optical power meter has achieved fast and stable feedback test results. NP2000 is equipped with professional photoelectric detection probes, which are respectively suitable for the maximum range and high resolution measurement range. The detection probe can not only ensure that the tester has high sensitivity, but also withstand higher power density. The automatic optical power meter has been widely used in the measurement of various strong lights and other radiation intensities from ultraviolet to infrared; it can also be used in optical medicine, optical protection, optical processing, optical ranging, optical animal and plant physiological response, etc. Stable, high-precision and highly sensitive radiation intensity measurement.
Technical parameter
Model | CEL-NP2000-2A | |
Optical power meter | 0-2000mw | |
Probe diameter | φ10mm | |
Test output | Optical power value mw; optical power density value mw/cm2, real-time display test results and record | |
Wavelength range | 190nm-11000nm; ultraviolet, visible, infrared, continuous measurement or section measurement | |
Probe | Real-time display probe temperature, 15~45℃ system automatically adjusts temperature drift, temperature drift: full range <±1%; | |
Accuracy | Resolution: 1μw; response time: <0.4 seconds; | |
measuring | Direct reading display, automatic gear shift measurement, to ensure the accuracy of measuring weak light and strong light at the same time | |
Test Results | Real-time display, computer software can read in real time, can calculate the quantum efficiency of photolysis water | |

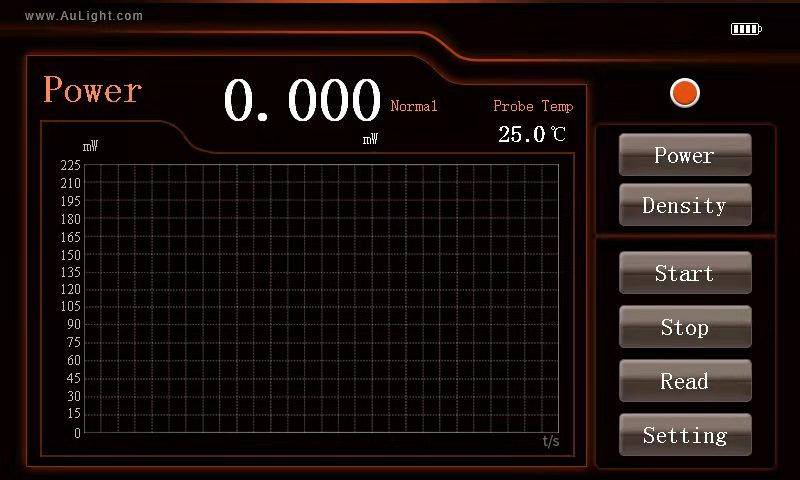

screen display | 7-inch touch screen, SD card real-time recording test data, can be exported at any time | |
Measurement error | <5% | |
Built-in | Portable lithium battery power supply 3000mAh, charging power supply: 220v, 50Hz |
