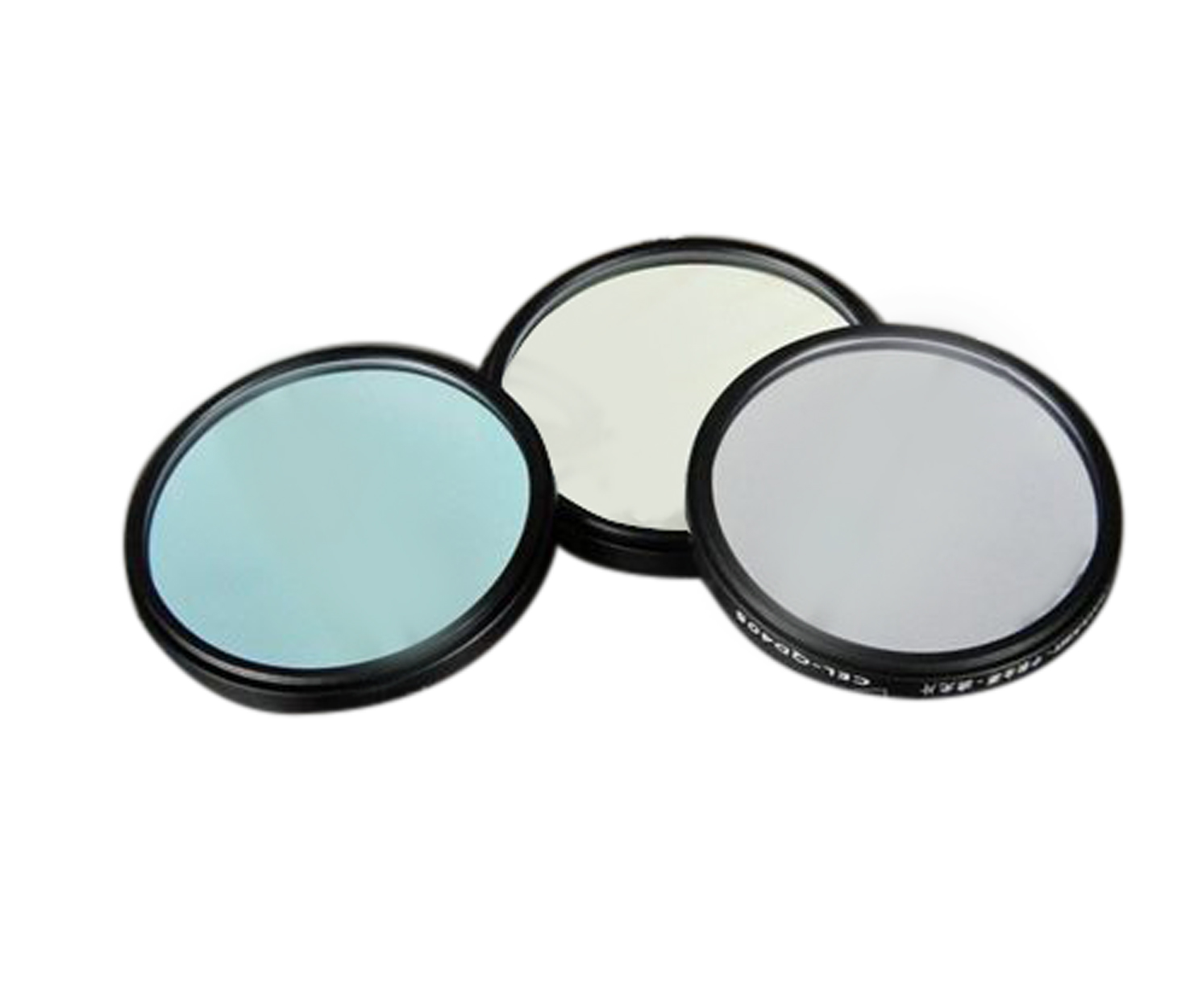

Quartz optical coating filter

 Quartz optical coating filters are all made of high-quality quartz hard coating technology ,The commonly used specification is a 60mm diameter disc, which is fixed by M62 thread and can be stacked in multiple layers. Can be used with the full range of light sources of China Education Golden Resources.

UV cut filter  Broadband UVIRCUT400-780，UVIRCUT420-780

1.Band-pass filter into a bandpass ultraviolet, visible bandpass bandwidth of 15nm half-wave, low quartz substrate using high vacuum coating, specifications for M62（Filter diameter 59mm）, The background wavelength is 200-1100nm，OD2.

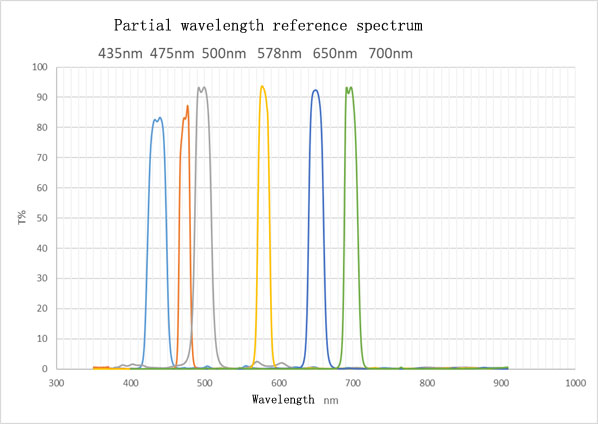

2.UV band pass（QD） 254nm，280nm，290nm，300nm，313nm（UVB），334nm，350nm，355nm，365nm（UVA），370nm，375nm，380nm

3.Visible bandpass（QD） 400nm，405nm , 420nm，435nm，450nm，475nm，500nm，520nm，550nm，578nm,，600nm，630nm，650nm，670nm，700nm， 730nm,   765nm，850nm，940nm

4.Simulated daylight filter  AM1.5

5.IR filter   VISCUT800

6.Reflectance spectrum filter  Reflective filter  57*70mm

Optical glass filter, M62 thread, toughened optical glass, high temperature resistance

1.Bandpass filter：DBT395；DBT435；DBT470；DBT500；DBT530

2.DBT700；313nm；334nm；365nm ；HB700；HWB950；HWB800

3.Infrared filter：GRB3；GRB1

4.Ultraviolet cut-off series filter：JB280；JB360；JB340；JB380；JB400；JB420；JB450；JB450；JB510

5.attenuation film：AB25；AB50

6.polarizer
