Product application:

Solar cell test, simulation of sunlight, point light source output, fiber extraction, uniform parallel light.

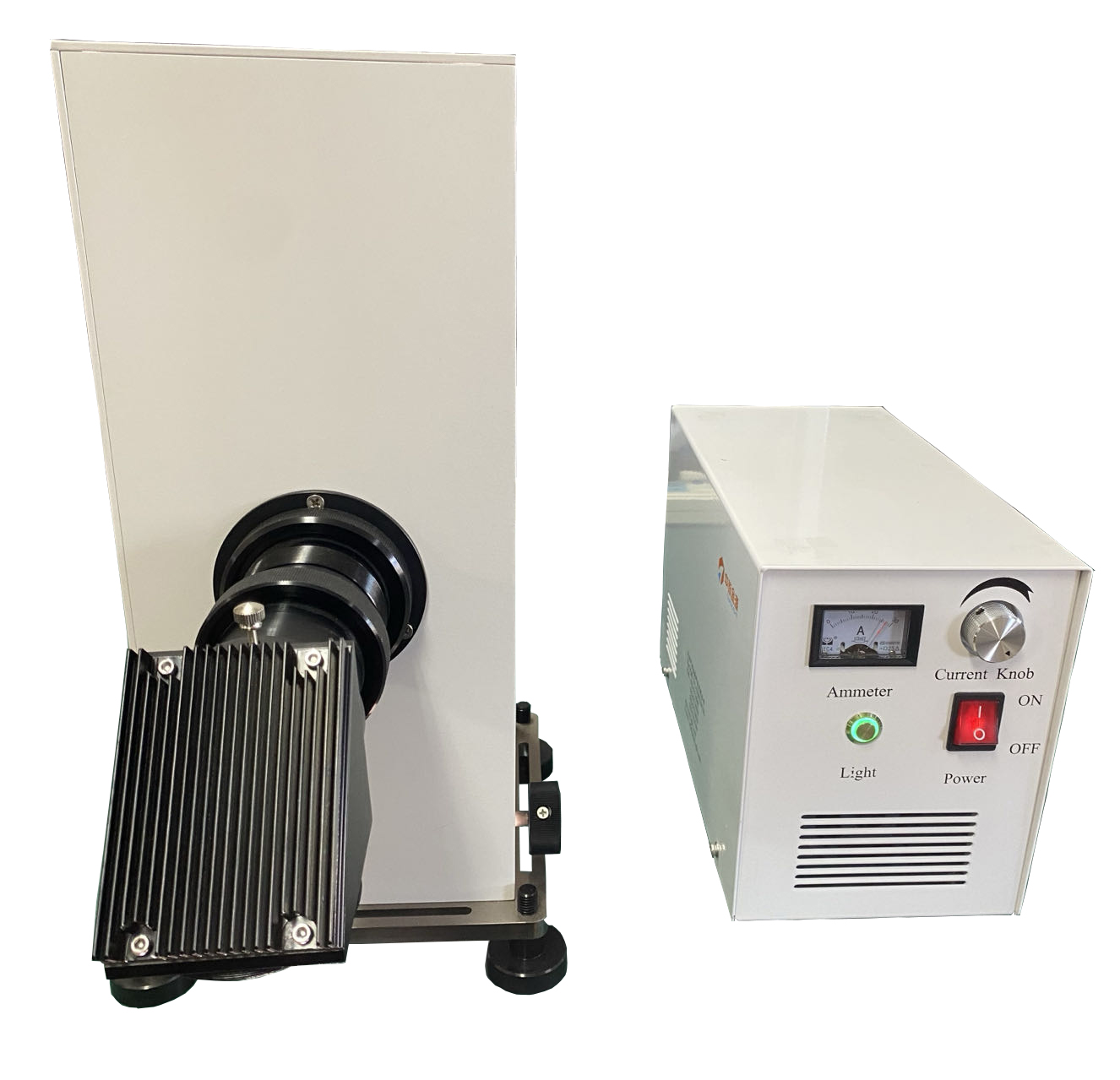

Simulated solar xenon lamp source

model	Configuration and function	note
CEL-S500	1 set of high stability xenon lamp power supply, xenon lamp box (including three-dimensional mobile platform), equipped with a domestic 500W xenon lamp bulb, convergence point light source 1 set of light path, 1 set of parallel light path, light path steering device can be configured with various filters, filter AREF	basic

AM1.5 Analog Daylight Spectra (Aultt-P Series Fiber Spectrometer Measurement)

Advantages and features:

1) High quality optical lens improves light collection efficiency;

2) Adopt the back light reflector structure to improve the light collection efficiency;

3) Built-in three-dimensional adjustment platform, can achieve optical precision adjustment;

4) Complete various accessories, can be connected to the optical fiber and a variety of filters;

5) The color temperature is up to 6000K to simulate sunlight;

6) Refrigeration mode adopts fan air cooling cycle refrigeration.

Specifications and parameters:


model	CEL-S500
The bulb type	Spheral xenon lamp
Optical power density	0.1-5Sun(1Sun= 100mW /cm²)
The most powerful	500W
Current range	15A-25A
Spectral range	300-2500nm(mainly 350-1100nm with AM1.5G filter )
Uniformity	＜5-10%
Light source stability	±0.5%
Parallel spot diameter	50-60mm
Lamp life	≥800hours
Cooling way	Air cooling

Combined accessories (optional) :

1) The accessories can be used with CEL-HX series xenon lamp light source.

2) with the use of xenon lamp light source, can choose a variety of accessories, can be installed lens, filter, optical fiber, etc., suitable for different experimental needs.

3) sleeve of parallel light lens group.

4) AM1.5G daylight spectrum fitting filter.

5) Optical path steering device.

6) Optical fiber connection and output device.
