Advantages and features:

◆ Vertical design, can adapt to a variety of environments;

◆ Wide operating port, easy to carry out low temperature test in the tank;

◆ With external loop interface, can be matched with a variety of joints;

◆ Precision temperature control, display resolution can be optional 0.1℃ or 0.01℃;

◆ Various temperature ranges, -10, -20, -40, -60 and -80℃;

◆ A variety of safety design, with overtemperature, water level, sensor open circuit or short circuit alarm;

◆ Optional automatic water replenishing function to ensure uninterrupted use;

◆ Optional RS485 communication, easy to connect;

Product application:

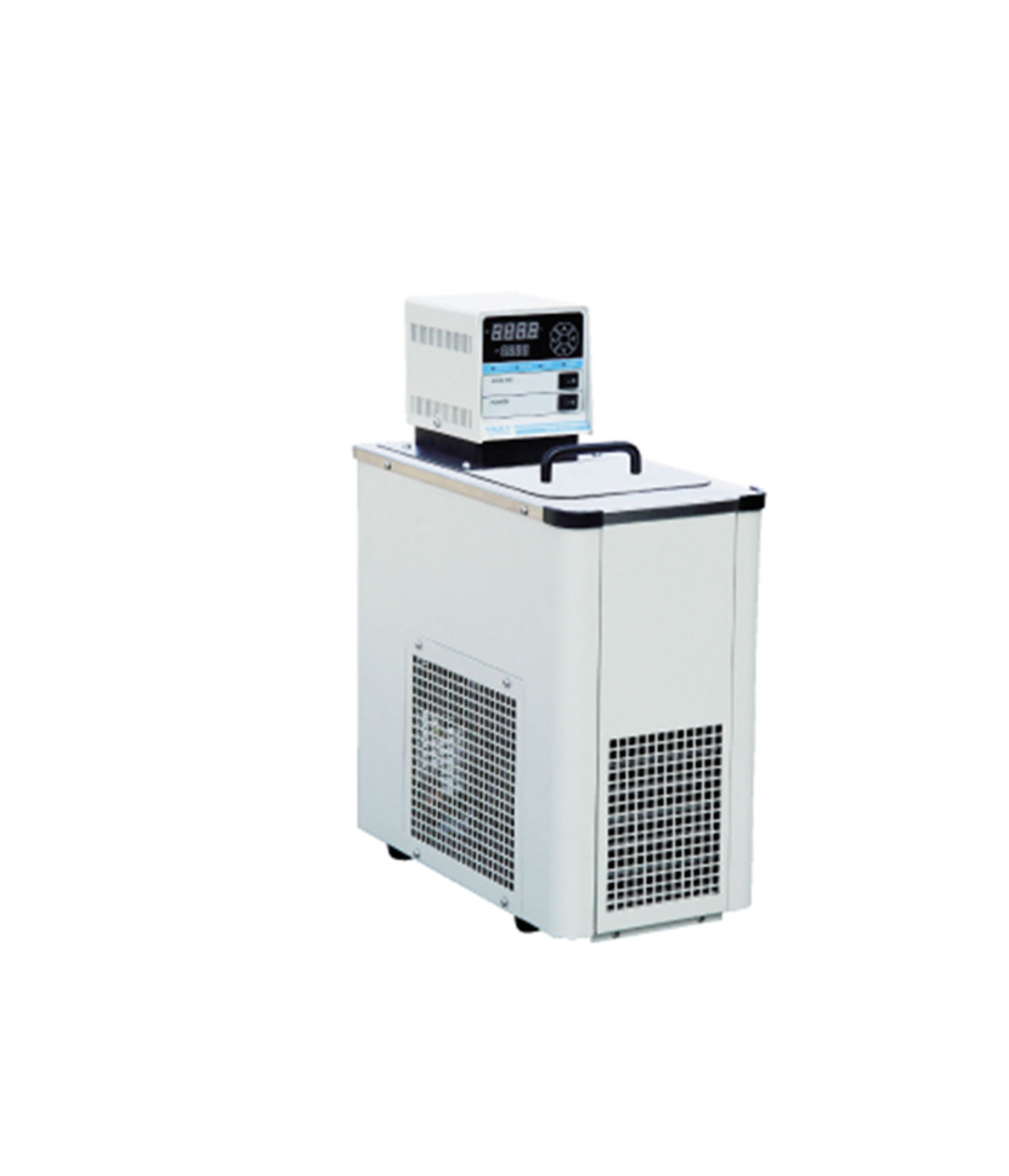

HX-205 is mainly used for experiments with temperature requirements below room temperature. It comes with refrigeration compressor and circulating pump. It is an integrated product of refrigeration and heating, also known as low-temperature water bath. Simple and compact in shape, easy to operate, can be operated in a single machine, low temperature experiment in the tank (without water cooling). Or supporting electrophoresis instrument, viscometer, molecular pump, small rotary evaporator, etc.

Detailed introduction:

HX series thermostatic waterbath, microcontroller technology is combined with PID control method of high accuracy, multi-function products within the machine in the sink for constant temperature experiment, or through a hose connected to other devices, used as a source of constant temperature, HX series is mainly used for high temperature and low temperature test, the machine built-in refrigeration compressor and the circulating pump, refrigeration and heating is the integration of product, appearance is simple and compact, easy to operate, can be carried out within the tank test (no need to tap water cooling) at low temperature. Or external closed circuit circulation, can be used with rotary evaporator, electrophoresis apparatus, viscometer, molecular pump, medical cold cap, cooling blanket matching; Or for other equipment for circulating water cooling, such as electron microscope, ion pump, diffusion pump, microwave therapeutic machine, etc.

Specifications and parameters:

1) Temperature range: -20 ~ 95℃

2) Temperature control accuracy: ±0.05 ℃

3) refrigeration power: 200W

4) Flume volume: 5 L

5) Maximum pressure of circulating pump: 0.25bar

6) Maximum flow of circulating pump: 5~10 L/min

7) Water tank depth: 150 mm

8) Operation port size: W140×D150mm

9) Dimensions: W215×D405×H550 mm

10) Instrument weight: 30KG
