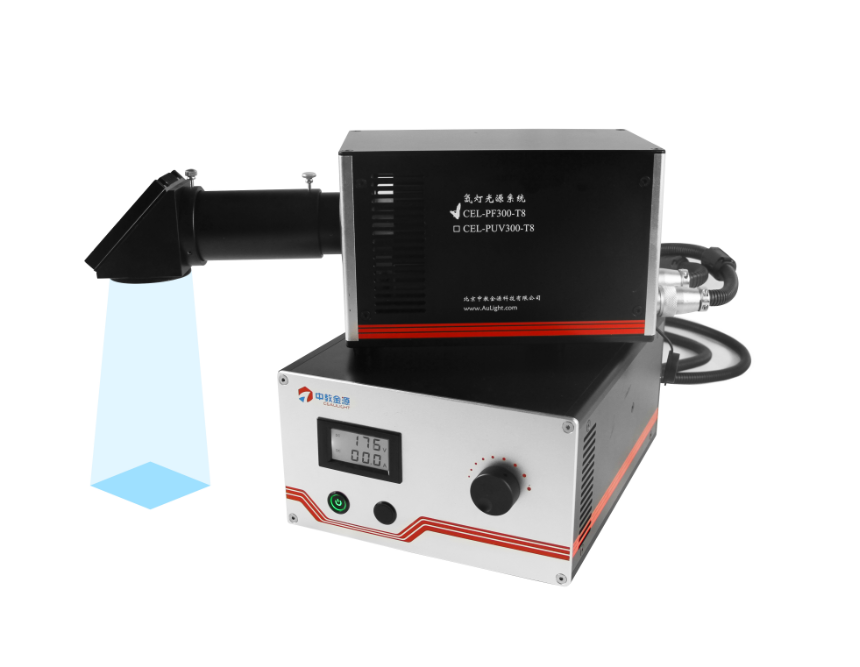

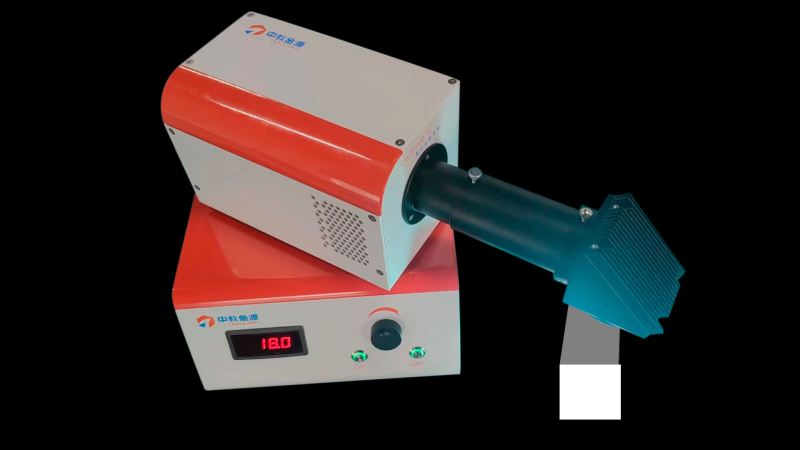

CEL-PE300-4A Square Xenon Light Source

Model:CEL-PE300-4A

Place of Origin:Beijing

Brief introduction:The light source for photocatalysis and photoelectricity adopts PerkinElmer300W bulb to realize the square light output

Contact now

The light source for photocatalysis and photoelectricity adopts PerkinElmer300W bulb to realize the square light output ( 20 * 20mm-100 * 100mm), and has the function of focusing, especially in the fields of gas-solid catalysis, photocatalysis, photochemistry and photocatalysis Better application.

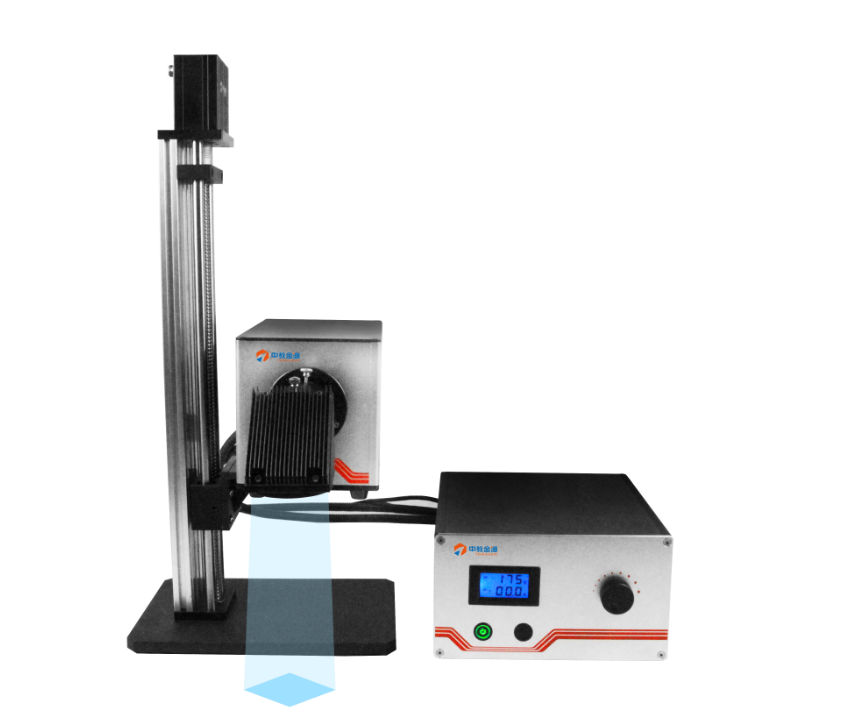

                        LMP400 Lifting Platform


Advantages of CEL-PE300-4A

1.Square light output, square light can be adjusted in a wide range  20 * 20mm-100 * 100mm2;

2.The square light spot uses the lens group to completely collect the light energy, instead of blocking to form a square spot;

3.The output power of the square spot is the same as the light intensity of the round spot, achieving 2000mw / cm2;

4.The light uniformity of the square spot is more than 10 times higher than that of the round spot;

5.Achieve adjusting precise square light spot at any distance.;

6.Safe designing, multi-level safety protection such as grounded and high voltage.;

7.Collocate with NP2000 optical power meter to display the absolute irradiance in real time, and stabilize the constant optical power in real time.


Technical Parameters of CEL-PE300-4A

Items

Parameters

Output optical power

0.1~20Sun(10~2000mw/cm2)

light bulb

PerkinElmer300W

Light shape

20*20mm-100*100mm

Optical path steering

It can be matched with all CEAuLight,can be adapted to M62, M52, round filter, and does not affect the shape of  the light

Spectral range

320~2500nm

Temperature protection

Lamp bulb temperature monitoring,over-temperature power-off protection

Power supply

300W    AC220V,<0.05%

Light stability

<0.5%
