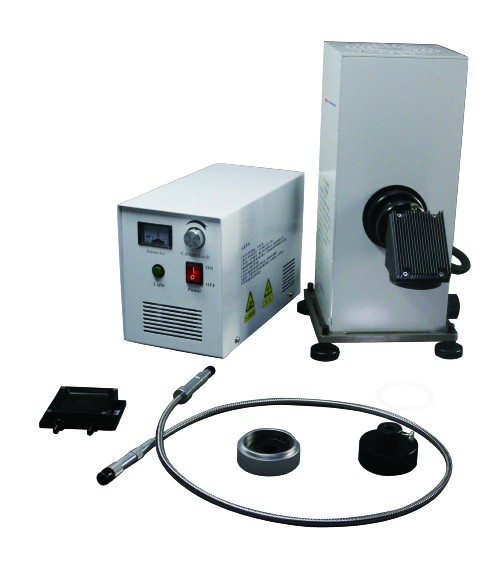

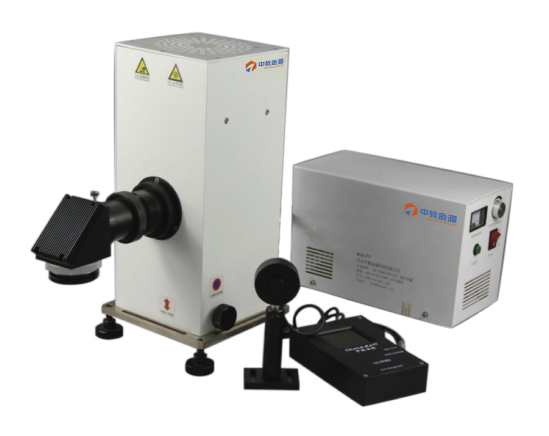

CEL-S500E7, S500RE7 simulate solar xenon lamp light source
Model：CEL-S500E7, S500RE7
Place of Origin：Beijing
Advantages and features:

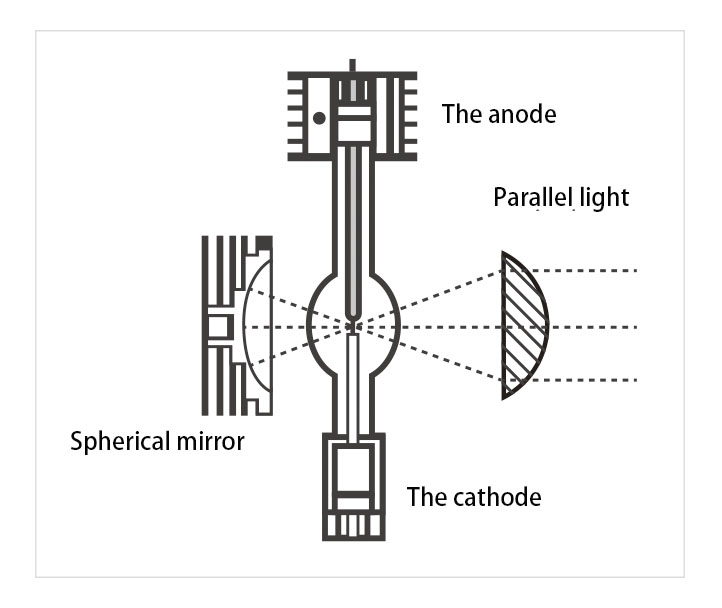

High quality optical lens improves light collection efficiency; The back light reflector structure is used to improve the light collection efficiency. Built-in three-dimensional adjustment platform, can achieve optical precision adjustment; Complete various accessories, can be connected to the optical fiber and a variety of filters; The color temperature is up to 6000K, simulating sunlight; Refrigeration mode adopts fan air cooling cycle refrigeration.
Product application:
CEL-S500 xenon lamp source is a research-grade xenon lamp source specially for solar cells. The 500W high voltage short arc spherical xenon lamp is installed inside the light source to form arc discharge under high frequency and high voltage excitation. High-voltage short-arc spherical xenon lamp is a point source with very small emission point. When it is ignited, it radiates strong and stable ultraviolet, visible and near-infrared strong continuous spectrum. The light color in the visible region is extremely similar to that of sunlight, with high energy density and stable output. It can be used not only in solar cell research, but also in photoelectric responsive device test, solar cell I-V performance test, surface photovoltage spectrum, biological illumination, photocatalysis, surface defect analysis and other fields.
Simulated sunlight xenon lamp light source (intelligent E7 series, E9 series) to achieve the automatic startup, shutdown and light power automatic adjustment, number and frequency of custom switch realization of digital surveillance, program can adjust automatically according to different stages of experimental time requirement for the light intensity (can be fully simulated the change of the sun all day). Can be used with software.

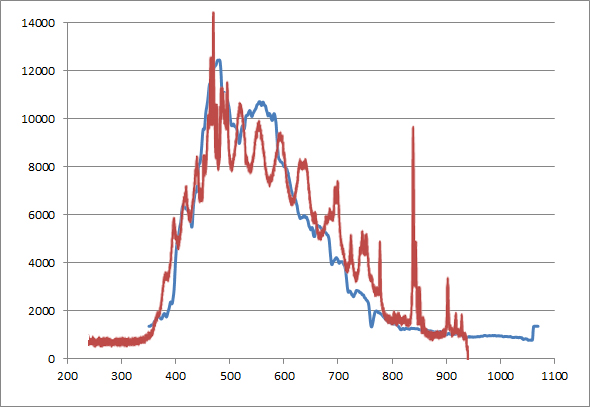

This series of light source can be compatible with a variety of specifications, brands, imported and domestic filters and lenses (25.4mm, 50.8mm,M52, M62, etc.), our company can provide a variety of specifications quartz filters, reflectors, K9 optical filters, etc. Visible light: solar cell test, simulated sunlight, point light source output, optical fiber extraction, uniform parallel light. With the use of AM1.5 filter, it can achieve a better fit with the sunlight spectrum, and the product performance is better. With the use of adjustable light waves, the irradiation area of the light spot can be adjusted. The irradiation area is continuously adjustable from 3mm to 50mm in diameter.
Detailed introduction：
model | Configuration and function | note |
CEL-S500P2 | 1 set of high stability xenon lamp power supply, xenon lamp box (including 3D mobile platform), 1 domestic 500W xenon lamp bulb, 1 set of convergence point light source light path | Point light type |
CEL-S500 | 1 set of high stability xenon lamp power supply, xenon lamp box (including three-dimensional mobile platform), equipped with a domestic 500W xenon lamp bulb, convergence point light source 1 set of light path, 1 set of parallel light path, light path steering device can be configured with various filters, filter AREF | basic |
CEL-S350 | 1 set of high stability xenon lamp power supply, xenon lamp lamp box (including three-dimensional mobile platform), equipped with a domestic 350W xenon lamp bulb, convergence point light source 1 set of light path, 1 set of parallel light path, light path steering device can be configured with various filters, filter AREF | basic |
CEL-S500R3 | 1 set of high stability xenon lamp power supply, xenon lamp lamp box (including 3D mobile platform), 1 Osram 500W xenon lamp bulb, 1 set of convergence point light source light path, 1 set of parallel light path, light path steering device can be configured with various filters, filter AREF | basic |
CEL-S500R5 | 1 set of high stability xenon lamp power supply, xenon lamp box (including 3D mobile platform), 1 set of Osram 500W xenon lamp bulb, 1 set of convergence point light source light path, 1 set of parallel light path, light path steering device can be configured with various filters, filter AREF, 1 liquid crystal fiber 1200mm in diameter, AM1.5 analog daylight filter | High donor |
CEL-S500E7 | 1 set of power supply of xenon lamp controlled by digital display microcontroller, xenon lamp box (including 3D mobile platform), 1 domestic 500W xenon lamp bulb, 1 set of convergence point light source light path, 1 set of parallel light path, 90 steering head light path steering device, and AREF filter are configured | intelligent |
CEL-S500RE7 | 1 set of high stability xenon lamp power supply, xenon lamp lamp box (including 3D mobile platform), 1 Osram 500W xenon lamp bulb, 1 set of convergence point light source light path, 1 set of parallel light path, light path steering device can be configured with various filters, filter AREF | intelligent |
CEL-S500E9 | 1 set of special control software, 1 set of digital display microcontroller control xenon lamp power supply, xenon lamp light box (including three-dimensional mobile platform), configuration of domestic 500W xenon lamp bulb, convergence point light source light path 1 set, 1 set of parallel light path, 90 steering head light path steering device, configuration filter AREF | Software controlled type |
CEL-PHCS500 | PHCS500 special control software to achieve real-time online monitoring of the light source, real-time monitoring of the work indicators of the light source; It can complete the switch of light source, timing switch, power adjustment, setting of working state and working mode, and export of working data and information. | software |
Specifications and parameters：
model | CEL-S500 |
The bulb type | Spheral xenon lamp (Osram imported from Germany is optional) |
Optical power range (1Sun= 100mW /cm2) | 0.1-5Sun |
The most powerful | 300-500W |
Range of current regulation | 15A-25A |

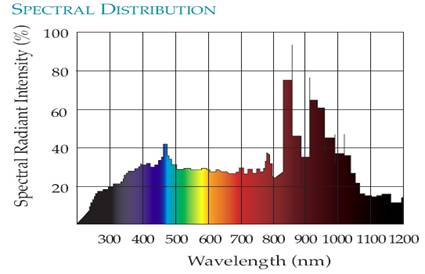

The main emission spectral range | 300-2500nm |
Light intensity (mw/cm2) | 10-500 |
Power stability | ±0.01% |
Light source stability | ±0.5% |
Parallel spot diameter | 50-60mm |
Spot light output diameter | 2-3mm |
zoom | Can change the size of the light output circle spot |
Lamp life | 500-1000 hours |
Cooling way | Air cooling |
Basic configuration:
1) Special xenon lamp current stabilized power supply
2) Light box and optical convergence system
3) Preinstall a 500W xenon lamp made in China (imported Osram xenon lamp is optional)
4) Installation and operation instructions
5) Complete combination accessories (optional)
With the use of xenon lamp light source, you can choose a variety of accessories, lenses, filters, optical fiber, etc., suitable for different experimental needs.
Parallel lens set sleeve
Solar spectrum correction filter
Optical path steering gear
Optical fiber connection and output device
Accessories and photocatalytic xenon lamp source accessories general, can cooperate with a variety of filters, light waves, optical fiber, box
