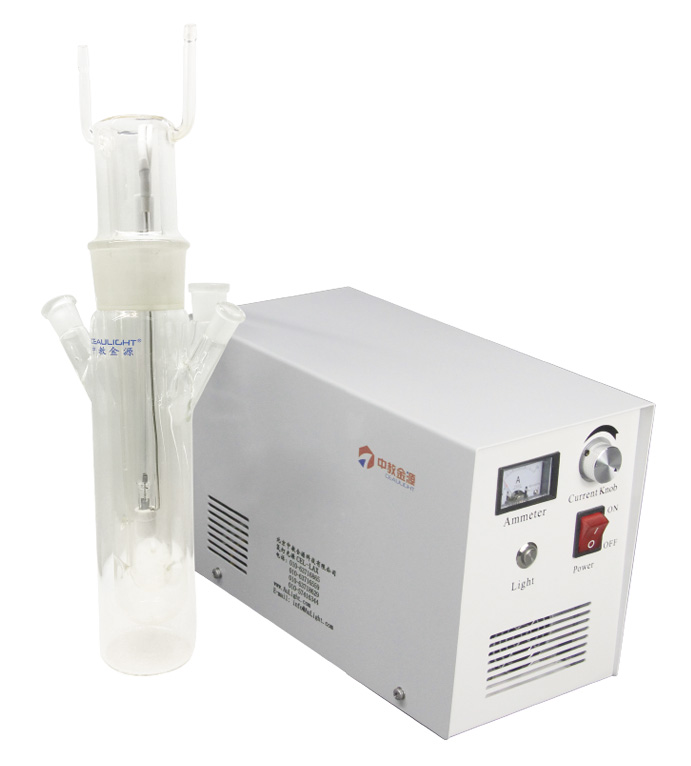

Product introduction

long arc xenon lamp is widely used in visible light to produce hydrogen from photolysis water, photodegradation of pollutants, photochemical synthesis and other research fields. The light source can be used flexibly and irradiate continuously for a long time

Product characteristics

1.Long arc xenon lamp is suitable for photochemical reaction, photocatalysis, photodegradation of pollutants and photodegradation of harmful gases in the visible region.

2.Long arc xenon lamp is suitable for built-in reaction form and reactor volume 250ml~5000ml.

3.The spectrum of xenon lamp is closer to that of sunlight, so it is suitable for simulated sunlight experiment.

4.A preliminary study on the application of long-arc xenon lamp with low cost and photochemistry

5.The long arc xenon lamp can realize the simultaneous experiment of multiple parallel samples and the screening of catalysts.

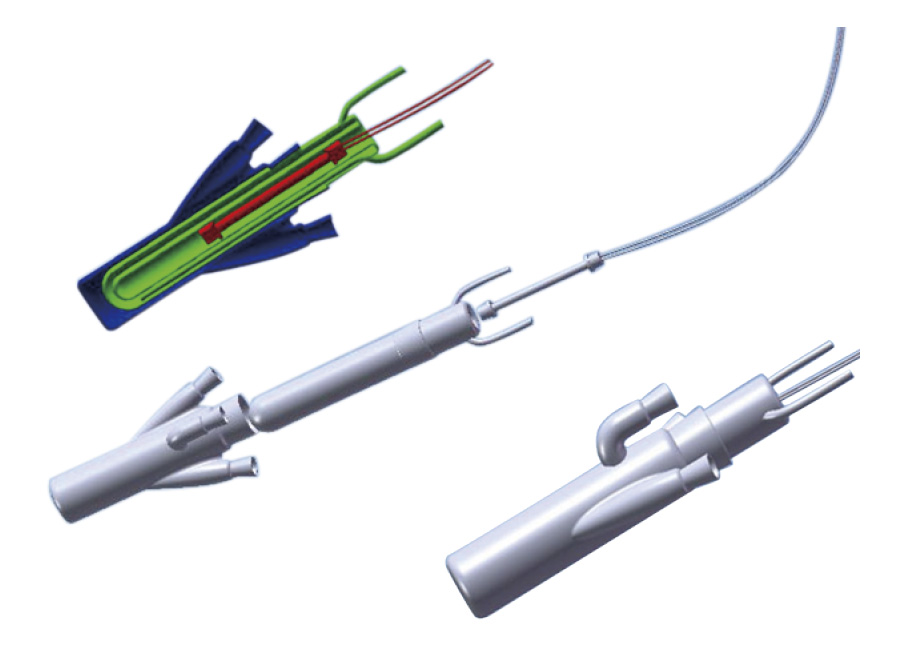

Glass part of photochemical reaction system

Cold trap: CEQW60, quartz glass material, used for long arc xenon lamp cooling, can remove part of the infrared light to reduce the thermal effect, grinding mouth 60max 40, effective length 220mm.

Photochemical reactor: CEPR250, high borosilicon (PYREX) glass, used for photochemical reaction container, can cooperate with cold trap and magnetic stirring, can choose flat bottom and round bottom, and the solution can receive xenon lamp irradiation effectively. The effective volume of the reactor is 250ml, and the grinding mouth is 60/40, 14/ 23,19/26, 24/ 29mm CEPR500, with an effective length of 220mm, an effective volume of 500ml, an effective length of 220mm, and an effective volume of 500ml.

 Product parameters

1.Model：CEL-LAX500

2.Input power of long arc xenon lamp 500W

3.Full length of long arc xenon lamp 220mm

4.Matching power input 220V AC
