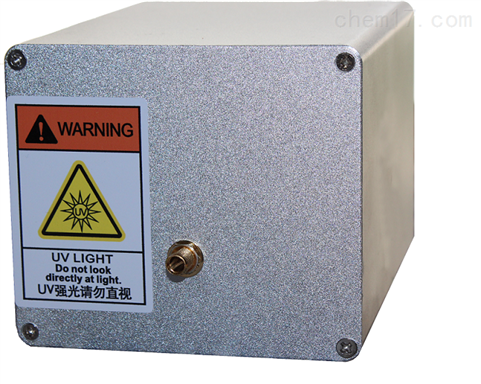

Pulsed xenon lamp source

Model：CEL-XFL20

Place of Origin：Beijing

Brief introduction：Pulsed xenon lamp light source XFL20 is an optical fiber coupled ultraviolet / visible / near infrared light source developed by our company, covering wavelength Fan 200 nm- &amp;gt; 1100nm. SMA905 interface is used to output energy. The DC12V power supply is supplied directly and has strong integrity, so it is the choice for transmission and absorption spectrum measurement.

Contact now

Pulsed xenon lamp light source XFL20 is an optical fiber coupled ultraviolet / visible / near infrared light source developed by our company, covering wavelength Fan 200 nm- > 1100nm. SMA905 interface is used to output energy. The DC12V power supply is supplied directly and has strong integrity, so it is the choice for transmission and absorption spectrum measurement.

Characteristics

1.Optical fiber coupling

2.UV/VIS/NIR optical output

3.High stability

4.Compact

5.Long life

Pulsed xenon lamp source XFL20
Spectral output range	200nm~1100nm
Optical fiber interface	SMA905
Input power supply	DC12V 1A
Operating temperature	-10~45℃
Size	125mm(L) * 97mm(W) * 84mm(H)
Weight	~480g（Without optical fiber）
Life span	1 × 10 9 flashes
